Operation limits:

Suction lift up to 8 m
Clean water, non-aggressive liquid
Fluid temperature up to 60'C
Maximum ambient temperature 40'C

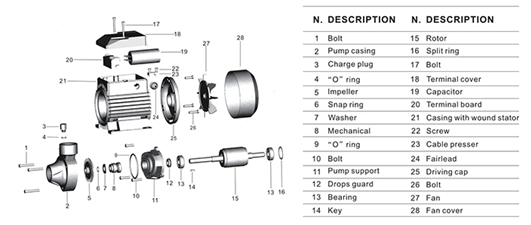

Structural characteristic
Pump body: cast iron
Motor frame: cast aluminum
Impeller: Brass, Alu. impeller, nylon impeller available according to request
Winding: 100% copper wire
Mechanical seal: Stainless steel, graphite to ceramic
Bearing: C&U ( Chinese top brand)
Shaft: Carbon steel AISI 1045 or stainless steel AISI 420required
Motor: Single phase, different voltage and frequency is available according to request
Insulation: B class
Protection:IP54
Duty: Continuously rated
Thermal overload protected


Perepheral pump offers high presures in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings,to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units.For the correct functioning of the pump,use clean water,or non-aggressive liquids only,without sand or other solid impurities.

These pumps should be installed in a covered area, protected against the weather.
