Introduction
Operation limits:
Suction lift up to 8 mClean water, non-aggressive liquid
Fluid temperature up to 60'C
Maximum ambient temperature 40'C

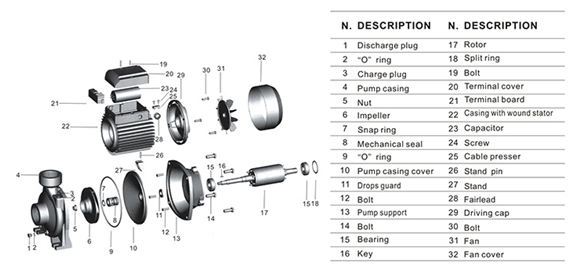

Structural characteristic
Pump body: cast iron
Motor frame: cast aluminum
Impeller: Brass, Alu. impeller, nylon impeller available according to request
Winding: 100% copper wire
Mechanical seal: Stainless steel, graphite to ceramic
Bearing: C&U ( Chinese top brand)
Shaft: Carbon steel AISI 1045 or stainless steel AISI 420required
Motor: Single phase, different voltage and frequency is available according to request
Insulation: B class
Protection:IP54
Duty: Continuously rated
Thermal overload protected
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.To be used in flow irrigation systems in gardening and agriculture and in industrial fittings.
These pumps should be installed in a covered area, protected against the weather.
